Using NFC in Delphi XE7 (and later) Android apps

Brian Long Consultancy & Training Services Ltd.
August 2014

This is an update to a Delphi XE6 version of the same article. Note that this update is almost identical in content. The only reason for the update is to slightly simplify the step of using some compiled Java code. The processes outlined in the original XE5 article and in the updated XE6 article will work perfectly well, but XE7 simplifies one aspect of the process a little.

Accompanying source files available for Delphi XE5, Delphi XE6, Delphi XE7, Delphi XE8, Delphi 10 Seattle and Delphi 10.1 Berlin are available.

Contents

NFC Android Delphi

Introduction

Delphi Android apps can use Android APIs, both those already present in the RTL and others we can translate manually, in order to interact with parts of the Android system. This article will look at how we can make use of the NFC (Near Field Communications) API to access NFC tags in the same way as other Android NFC apps.

Through this article you should gain an insight into the techniques involved in building NFC apps and working with native Android NFC APIs, some of which are reasonably straightforward to employ and some of which involve metaphoricaly rolling up ones sleeves and getting ones hands dirty.

NFC tags have tag IDs so your app could just recognise an NFC tag and respond to it. However NFC tags can also have varying amounts of data written to them. This can include URLs, text or any other data. Your app can read this data and do things based upon what it finds.

An app that supports NFC tags can operate, broadly speaking, in one of two ways:

  1. It can be installed and have Android understand that it can respond to certain kinds of NFC tag technology. Then when the device scans a tag Android can launch the application automatically. If multiple applications are installed that can respond to the scanned tag then Android will initially present a chooser dialog so the user can choose the application that will respond to the tag. The user can also specify that one of the apps will be the default response in future. This auto-launch behaviour of Android is described as the tag dispatch system.
  2. It can be installed and not notify Android of its support for NFC tags and so not be auto-launched. Instead, when the app is manually launched it can allow NFC tags to be exclusively read by it and respond accordingly at that point to the tag and its content. This is descibed as the foreground dispatch system.

Either way the application setup will involve requiring permission to use the NFC sensor. In the project options dialog this is done in the Uses Permissions section:

Specifying the NFC permission requirement

If the use of NFC is crucial to the operation of your application you can also ensure this is known to the Android ecosystem. Indeed if you do this the Google Play online store will not list your app to devices that do not have NFC hardware. You do this by tweaking your Android manifest file, which as Delphi developers you cause to occur by editing the file AndroidManifest.template.xml that appears in the project directory when you first compile your mobile project.

Within the <manifest> element you add this child element, which will be a sibling to the <application> element:

<uses-feature android:name="android.hardware.nfc" android:required="true" />

The NFC API

Before embarking on any NFC coding we need to have access to the Android NFC API. This is not provided as part of Delphi but that is not an insurmountable obstacle as there are various Android API import tools available. These import tools produce import units that follow the model used by those provided in Delphi's RTL. Delphi's native ARMv7 code communicates with the Java world using the Java Bridge (or JNI Bridge or Native Bridge as it is sometimes called) so these import units are often called Java Bridge units.

The ins and outs of using the Java Bridge interface to represent Java classes using Delphi interfaces (one for the class methods and one for the interface methods, bound together by the TJavaGenericImport-based generic bridge class) are a bit beyond the scope of this particular article, but I did go into it in my CodeRage 8 session on using Android APIs from Delphi XE5:

One such Java API import tool, Java2Pas, was discussed on FMXExpress. It has been used by the person behind FMXExpress to import all APIs in the Android SDK. The results, for a whole range of Android SDK versions, can be found in a Github repository, which is a very useful (even if not particularly usable) resource.

As hinted by the parenthesised comment it turns out the NFC import units (and maybe others - I haven't yet had the need to check) need work to be suitable as input to the compiler. Indeed if you pull down, say the API level 19 import units, android.nfc.*.pas from https://github.com/FMXExpress/android-object-pascal-wrapper/tree/master/android-19 you'll find they won't compile for a whole heap of reasons including a gamut of circular unit references.

Anyway, not being one to be thwarted I took the interfaces and put them into units that were more in keeping with what the compiler was expecting, fixed some errors in the definitions and the resultant import units are included in the example downloads. I've coallesced what I needed from the 27 import units into two units called Androidapi.JNI.Nfc.pas and Androidapi.JNI.Nfc.Tech.pas.

Bear in mind that documentation for the various classes represented by these Java Bridge interface definitions can be found here and here on the Android API reference site. Additionally the Android documentation contains general NFC programming advice (targeted at Java programmers, but still useful background nevertheless), which can be found here.

The NFC tag dispatch system

Building an application that hooks into the NFC tag dispatch system is reasonably straightforward when you have the required API imports and have read the Android documentation on the matter.

In the downloadable source archive that accompanies this article there is an example app that uses the NFC tag dispatch system in the 1_TagDispatch subdirectory.

To tell Android to launch your application you must add additional intent filter definitions into the Android manifest for your application's main activity (the Android UI object that Delphi forms are rendered within). These are statements from your application saying that when a particular NFC action needs to be handled your activity can do the job. An intent is an Android system message represented as an object with varying amounts of associated data available through various methods.

When Android scans an NFC tag it parses the data on it to see if that data is of a known type, such as a URI or plain text. Then Android will locate a suitable activity to launch to handle the NFC tag. If more than one activity has registered an interest in the same tag capabilities then an activity chooser dialog is presented to the user.

In the case of an NFC tag containing NDEF (NFC Data Exchange Format) records Android will parse the data and work out the MIME type or URI. It will then launch an activity that has registered an intent filter for ACTION_NDEF_DISCOVERED (see Android documentation here) with the appropriate MIME type or URI scheme as additional criteria.

If no activity registered an intent filter for the MIME or URI specifics on the tag, or if the tag contains NDEF data not of a MIME/URI type, or if the NFC tag is of a known tag technology but does not contain NDEF data then Android will launch an activity registered for the ACTION_TECH_DISCOVERED intent (see Android documentation here).

Finally, if no activity handles either the ACTION_NDEF_DISCOVERED or ACTION_TECH_DISCOVERED intents then Android looks for one that will handle the ACTION_TAG_DISCOVERED intent (see Android documentation here).

Having seen the general description let's now see some specifics of what we'd need to add into AndroidManifest.template.xml to register for some of these intents.

Any intent filter we add needs to be added as a child element of the existing <activity> element and as a sibling of the existing intent filter for the LAUNCHER category of the MAIN action (this existing intent filter is how Android knows which activity to list for an application in the apps list).

ACTION_NDEF_DISCOVERED

Let's say you want your application to specifically respond to an NFC tag that has an NDEF record containing the URL of my web site: http://blong.com. This can be done by crafting an intent filter or two for ACTION_NDEF_DISCOVERED, for example:

<activity android:name="com.embarcadero.firemonkey.FMXNativeActivity"
       android:label="%activityLabel%"
       android:configChanges="orientation|keyboardHidden"
       android:launchMode="singleTop"
>

    <!-- Tell NativeActivity the name of our .so -->
    <meta-data android:name="android.app.lib_name"
       android:value="%libNameValue%" />
    <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
    </intent-filter>

    <intent-filter>
        <action android:name="android.nfc.action.NDEF_DISCOVERED"/>
        <category android:name="android.intent.category.DEFAULT"/>
        <data android:scheme="http"
              android:host="blong.com" />
    </intent-filter>

    <intent-filter>
        <action android:name="android.nfc.action.NDEF_DISCOVERED"/>
        <category android:name="android.intent.category.DEFAULT"/>
        <data android:scheme="http"
              android:host="www.blong.com" />
    </intent-filter>
</activity>

So here we are looking for any NDEF recognised data format where it is a http URI with either of the two host names that represent the site. If Android scans an NFC tag with either of those URLs then the app will be launched.

Similarly if you want your application to respond to an NFC tag containing plain text you define an intent filter specifying the plain text MIME type thus:

<activity android:name="com.embarcadero.firemonkey.FMXNativeActivity"
       android:label="%activityLabel%"
       android:configChanges="orientation|keyboardHidden"
       android:launchMode="singleTop"
>
    <!-- Tell NativeActivity the name of our .so -->
    <meta-data android:name="android.app.lib_name"
       android:value="%libNameValue%" />
    <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
    </intent-filter>

    <intent-filter>
        <action android:name="android.nfc.action.NDEF_DISCOVERED"/>
        <category android:name="android.intent.category.DEFAULT"/>
        <data android:mimeType="text/plain" />
    </intent-filter>
</activity>

If you want your app to launch if either the specified URL or plain text is found on a scanned tag then you simply include both intent filters, and correspondingly you can add in any additional ones that make sense for your application as required.

If you want the URL response to be more general, so have the app launch for any URL, you would modify the intent filter like this:

<activity android:name="com.embarcadero.firemonkey.FMXNativeActivity"
       android:label="%activityLabel%"
       android:configChanges="orientation|keyboardHidden"
       android:launchMode="singleTop"
>
    <!-- Tell NativeActivity the name of our .so -->
    <meta-data android:name="android.app.lib_name"
       android:value="%libNameValue%" />
    <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
    </intent-filter>

    <intent-filter>
        <action android:name="android.nfc.action.NDEF_DISCOVERED"/>
        <category android:name="android.intent.category.DEFAULT"/>
        <data android:scheme="http" />
    </intent-filter>
</activity>

You can use your imagination and try other combinations.

ACTION_TECH_DISCOVERED

If you aren't particularly interested in any specific data or data type you can instead look at the second of the two intents: ACTION_TECH_DISCOVERED. There are a variety of independently developed NFC tag technologies that may be present on a given tag and these are all represented by Android classes as listed on this documentation page. This intent focuses on responding to specified subsets of these technologies, which you list in an XML resource file that you need to add to the deployment profile for your mobile FireMonkey project.

Each technology subset you want to respond to is set up in a <tech-list> element in the resource file. You can see examples of how the resource file might look on this Android documentation page. For example if you want to respond to tags that support MifareUltralight, NfcA and Ndef technologies you would need an XML file that looks like this:

<?xml version="1.0" encoding="utf-8"?>

<resources xmlns:xliff="urn:oasis:names:tc:xliff:document:1.2">
    <tech-list>
        <tech>android.nfc.tech.MifareUltralight</tech>
        <tech>android.nfc.tech.NfcA</tech>
        <tech>android.nfc.tech.Ndef</tech>
    </tech-list>
</resources>

Alternatively if you want your app to respond to any technology at all you could set the resource file up with each technology specified alone in its own <tech-list>:

<?xml version="1.0" encoding="utf-8"?>

<resources xmlns:xliff="urn:oasis:names:tc:xliff:document:1.2">
    <tech-list>
        <tech>android.nfc.tech.IsoDep</tech>
    </tech-list>
    <tech-list>
        <tech>android.nfc.tech.NfcA</tech>
    </tech-list>
    <tech-list>
        <tech>android.nfc.tech.NfcB</tech>
    </tech-list>
    <tech-list>
        <tech>android.nfc.tech.NfcF</tech>
    </tech-list>
    <tech-list>
        <tech>android.nfc.tech.NfcV</tech>
    </tech-list>
    <tech-list>
        <tech>android.nfc.tech.Ndef</tech>
    </tech-list>
    <tech-list>
        <tech>android.nfc.tech.NdefFormatable</tech>
    </tech-list>
    <tech-list>
        <tech>android.nfc.tech.MifareClassic</tech>
    </tech-list>
    <tech-list>
        <tech>android.nfc.tech.MifareUltralight</tech>
    </tech-list>
</resources>

To set up this resource file for a Delphi Android app you first save it as an XML file. I recommend creating a res directory in your project directory and creating an xml subdirectory within that. So for example your resource file could be called res\xml\nfc_tech_discovered_filter.xml, relative to the project directory.

Once the file exists you can add it to the Delphi project deployment manager. In Delphi choose Project, Deployment to invoke the deployment manager. Hit the deployment manager toolbutton whose tooltip says: Add Files. Navigate to find your XML file and press Open to add your file to the deployed files list. Set up the deployment of this file by changing these column values in the deployment manager for your resource file:

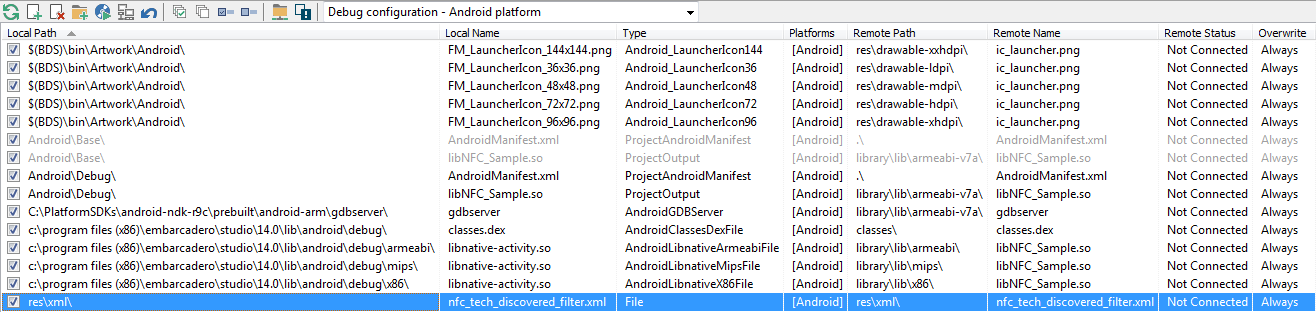

This should leave the deployment manager ready to deploy your file:

Deploying the tech discovered filter

With the resource file set up you can now add the required intent filter into the Android manifest template file that refers to it via a <meta-data> element:

<activity android:name="com.embarcadero.firemonkey.FMXNativeActivity"
       android:label="%activityLabel%"
       android:configChanges="orientation|keyboardHidden"
       android:launchMode="singleTop"
>
    <!-- Tell NativeActivity the name of our .so -->
    <meta-data android:name="android.app.lib_name"
       android:value="%libNameValue%" />
    <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
    </intent-filter>

    <intent-filter>
        <action android:name="android.nfc.action.TECH_DISCOVERED" />
    </intent-filter>
    <meta-data
       android:name="android.nfc.action.TECH_DISCOVERED"
       android:resource="@xml/nfc_tech_discovered_filter">
    </meta-data>
</activity>

The @xml reference in the resource string tells Android to locate the resource file in the xml directory of the standard Android res directory that Android apps typically include, compressed inside the final .apk Android package file.

ACTION_TAG_DISCOVERED

If no application has responded to the scanned NFC tag through ACTION_NDEF_DISCOVERED or ACTION_TECH_DISCOVERED then the final option of ACTION_TAG_DISCOVERED comes into play. You can register an interest in this intent by changing the Android manifest template thus:

<activity android:name="com.embarcadero.firemonkey.FMXNativeActivity"
       android:label="%activityLabel%"
       android:configChanges="orientation|keyboardHidden"
       android:launchMode="singleTop"
>
    <!-- Tell NativeActivity the name of our .so -->
    <meta-data android:name="android.app.lib_name"
       android:value="%libNameValue%" />
    <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
    </intent-filter>

    <intent-filter>
        <action android:name="android.nfc.action.TAG_DISCOVERED"/>
    </intent-filter>
</activity>

Tag dispatch system application structure

Now we have the infrastructure nailed down we can look at what goes into the application to make it work when it gets automatically launched by Android when a suitable NFC tag is scanned.

The key to getting the app to work is to run some code when the application starts up and becomes active, so the form's OnActivate event would be helpful here.

In the OnActivate event handler we must get the intent object that was passed to our activity by Android as that contains a "parcelled" copy of the tag object for us to examine and make use of:

uses
  FMX.Helpers.Android,
  Androidapi.JNI.GraphicsContentViewText,
  ...

procedure TMainForm.FormActivate(Sender: TObject);
var
  Intent: JIntent;
begin
  Log.d('OnActivate');
  Intent := SharedActivity.getIntent;
  if Intent <> nil then
  begin
    ...
  end;
end;

That takes us to a crucial point of being able to get to work on the tag object.

We'll come back to how to get the tag object out of the intent object and then pull stuff from an NFC tag object later.

I should be honest here and say that the tag dispatch system sample does demonstrate a shortcoming here. If you have the app launched by Android for a tag then all is well. However if another NFC tag is scanned while the app is in the foreground then the app will crash, citing an error relating to there no being a looper for the current thread. I haven't yet followed this up to see if there is a convenient way of mitigating the problem. I did eventually resolve this when working against later versions of Delphi. The Android manifest has an optional launchMode attribute for the activity, which needs to be set to singleTask. If you hit this problem you'll need to add in that attribute.

The NFC foreground dispatch system

The NFC foreground dispatch system is often the more interesting aspect of NFC tag reading as this is where an application "owns" the NFC sensor and can read whatever tags are presented to the device. However it is also the more cumbersome to implement as it requires some Java work to implement what the documentation tells you is required.

In the downloadable source archive that accompanies this article there is an app that uses the NFC foreground dispatch system in the 2_ForegroundDispatch subdirectory. We'll look at what is involved in building such an application in this section.

The basics as far as Android itself is concerned are as follows. To take control of the NFC sensor and enable the foreground dispatch system you call the default NFC adapter object's enableForegroundDispatch() method. To disable it you call the corresponding disableForegroundDispatch() method.

An application will be expected to enable the foreground dispatch system when it comes to the foreground and disable it when it leaves the foreground. If you use the IFMXApplicationEventService FMX platform service to set up an application event handler, this corresponds to when the event handler is triggered with the aeEnteredBackground and aeBecameActive values from the TApplicationEvent enumerated type values.

When the foreground dispatch system is active Android will scan NFC tags and send a suitable intent direct to your running activity by calling its onNewIntent() method. The intent will contained a "parcelled" copy of the tag object.

So that's how Android sees things - quite straightforward really. Unfortunately when it comes to porting this over to Delphi things quickly get rather messy.... :-/

However before we get onto the tricky parts (calling the NFC foreground dispatch system methods and receiving new intent objects) let's get some housekeeping sorted out. When the app starts it needs to be able to call NFC APIs and rather relies upon NFC being enabled, so let's check if that's the case. If it is not we can launch the system settings page for NFC to help the user out.

uses
  Androidapi.JNI.GraphicsContentViewText,
  Androidapi.JNI.Nfc,
  Androidapi.JNI.Toast,
...
  TMainForm = class(TForm)
  ...
  private
    NfcAdapter: JNfcAdapter;
  ...
  end;
...
procedure TMainForm.FormCreate(Sender: TObject);
begin
  NfcAdapter := TJNfcAdapter.JavaClass.getDefaultAdapter(SharedActivityContext);
  if NfcAdapter = nil then
    raise Exception.Create('No NFC adapter present');
end;

procedure TMainForm.FormActivate(Sender: TObject);
begin
  if NfcAdapter <> nil then
  begin
    if not NfcAdapter.isEnabled then
    begin
      Toast('NFC is not enabled.' + LineFeed + 'Launching NFC settings.');
      SharedActivity.startActivity(TJIntent.JavaClass.init(StringToJString('android.settings.NFC_SETTINGS')));
    end;
  end;
end;

To get access to the NFC adapter we call the getDefaultAdapter() class method of the NfcAdapter class, passing in our activity context. The adapter's isEnabled() method tells us if NFC is switched on. If not we construct an intent object passing in the activity action that shows the settings and pass that intent to our activity's startActivity() method (see here for more on this method) and leave the rest to the Android system and the user. Additionally a toast message is displayed, making use of my toast import unit, discussed elsewhere.

The Androidapi.JNI.GraphicsContentViewText.pas unit in the uses clause is part of the Delphi RTL and gives us access to JIntent, the Java Bridge representation of Android's Intent class. Androidapi.JNI.Nfc.pas is one the new pair of units crafted to make use of NFC (as mentioned earlier). Androidapi.JNI.Toast.pas is my import unit I made to import the Android toast message functionality.

Practical limitations of Delphi XE7's Android support

FireMonkey provides much functionality necessary for business applications needing to access data and display it to the user, but some common aspects of the Android OS are not 'wrapped up' in FireMonkey classes.

At this point you can call upon the various Android APIs that have been provided in the RTL, or craft or import new Java Bridge APIs if need be (as per the NFC API discussed earlier).

In cases where this isn't simply a case of calling into more APIs whose declarations need to declared with Java Bridge interfaces this poses a problem. Some examples of areas of the Android OS that are not wrapped up in XE7 and are difficult to incorporate include:

In Delphi XE7 these things and more require additional Java code to implement. Then some light hacking is needed to make use of this Java code in a Delphi application, which tends to get in the IDE's way, so IDE building/installing of the application becomes interesting, and debugging becomes more challenging. These consequences tend to force you into managing a pair of synchronised projects:

Over and above this general Android integration isue there is also a problem with the level of support of Java APIs offered by Delphi's Java Bridge functionality. It turns out that Java Bridge can handle a good chunk of the Android API, but in the case of a method that takes a 2D array we become unstuck. Support exists for normal parameters and 1D arrays currently.

Controlling the foreground dispatch system

The NfcAdapter.enableForegroundDispatch() method has a signature containing 4 arguments:

  1. an activity that will receive intents for scanned NFC tags
  2. a PendingIntent object that describes the intent to use when an NFC tag is scanned
  3. an array of intent filters to control exactly which tags you would like to respond to, or null/nil to respond to all scanned NFC tags (for ACTION_NDEF_DISCOVERED and ACTION_NDEF_DISCOVERED, coded versions of what we saw earlier)
  4. an array of arrays of strings representing tech lists, used to control which NFC technology subsets in an NFC tag to respond to, or null/nil for any NFC tag technology (for ACTION_TECH_DISCOVERED, programatic equivalent of the XML resource file we saw earlier)

Notice that 4th parameter? It's a 2D array. This means that the Java Bridge is incapable of representing this API currently. So this means we are obliged to make the calls to it (and for symmetry, to its companion API disableForegroundDispatch()) from Java code.

Given the expectations of how the methods should be called it would be wise to inherit from the FireMonkey activity class and override the standard Android lifetime methods onResume() and onPause() and call the NFC foreground dispatch control methods from there.

We'll get on to setting up the descendant activity presently, but for now let's assume it's been done so you can see what the Java code that we'll add into the class to toggle the NFC foreground dispatch system looks like:

import android.nfc.NfcAdapter;
import android.app.PendingIntent;

...

static final String TAG = "NativeActivitySubclass";
private NfcAdapter nfcAdapter;
private PendingIntent pendingIntent;

@Override
protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        //Custom initialization
        Log.d(TAG, "onCreate");
        nfcAdapter = NfcAdapter.getDefaultAdapter(this);
        Intent intent = new Intent(this, getClass());
        pendingIntent = PendingIntent.getActivity(this, 0,
                intent.addFlags(Intent.FLAG_ACTIVITY_SINGLE_TOP), 0);
}

@Override
public void onPause()
{
        Log.d(TAG, "onPause");
        super.onPause();
        disableForegroundDispatch();
}

@Override
public void onResume()
{
        Log.d(TAG, "onResume");
        super.onResume();
        enableForegroundDispatch(pendingIntent);
}

public void enableForegroundDispatch(PendingIntent pendingIntent)
{
        Log.d(TAG, "Enabling NFC foreground dispatch");
        nfcAdapter.enableForegroundDispatch(this, pendingIntent, null, null);
}

public void disableForegroundDispatch()
{
        Log.d(TAG, "Disabling NFC foreground dispatch");
        nfcAdapter.disableForegroundDispatch(this);
}

Here we see some standard activity methods being overidden to set things up and do what is required: onCreate(), onResume() and onPause().

Receiving new intents at runtime

To receive the intent that Android will send when the foreground dispatch system scans an NFC tag we need an onNewIntent() method. However the Android activity present in our FireMonkey Android application doesn't offer us a convenient onNewIntent() override. Just as above, this means we will need to inherit from the default activity we get in our application.

The specifics of the approach to inherit a new (Java) activity class and have it call some Delphi code from an overridden method requires some of the aforementioned light hacking. This may seem rather onerous and cumbersome but it is what it is and, in Delphi XE7, it is necessary.

The steps required for responding to a new intent are as follows:

That's quite a daunting list but fear not. Fortunately many of the Java-oriented steps can be wrapped up by a suitably crafted batch (.bat) file or command script (.cmd) file. And I'm sure if you really wanted to, you could also create a PowerShell script to do the same, but I've stuck with the old scripting that I know how to work with.

Setting up the Java code

The standard activity in any Delphi application is a Java class called FMXNativeActivity in the com.embarcadero.firemonkey package (or namespace), which actually inherits from the Android NativeActivity class. We need to inherit from FMXNativeActivity, override onNewIntent() and have it call a native method with an equivalent signature. Here's the code I rustled up for the job, which can be found in the java\src\com\blong\nfc directory under the project directory in a file called NativeActivitySubclass.java.

package com.blong.nfc;

import android.os.Bundle;
import android.util.Log;
import android.content.Intent;

public class NativeActivitySubclass extends com.embarcadero.firemonkey.FMXNativeActivity {

        static final String TAG = "NativeActivitySubclass";

        public native void onNewIntentNative(Intent NewIntent);

        @Override
        protected void onNewIntent(Intent intent)
        {
                super.onNewIntent(intent);
                Log.d(TAG, "onNewIntent(" + (intent != null ? intent : "(null)") + ")");
                onNewIntentNative(intent);
        }

}

Note that the actual Java source code also includes the pause/resume code that toggles the NFC foreground dispatch system that we saw earlier.

You might notice the Java code presented thus far has a bunch of trace statements in (calls to Log.d()). You can also emit the same type of trace calls from your Delphi code by ensuring FMX.Types is in your uses clause and calling Log.d there. These trace statements can be viewed in the Android Device Monitor or its deprecated predecessor Dalvik Debug Monitor Server (DDMS).

Building the Java code

In the java project subdirectory is a batch file called build.bat. Before invoking the batch file you must ensure you have done the required preparatory work.

Prep step #1: The first preparatory job is to add a few directories from the Android SDK and the JDK to your System path.

You can do this either:

Note that the required directories will vary depending on whether you already had an Android SDK installed, or whether you let Delphi install the Android SDK and, if so, where you told it to install it. For example you may have already installed the Android SDK in C:\Android\android-sdk-windows, or Delphi may have installed it into C:\Users\Public\Documents\Embarcadero\Studio\15.0\PlatformSDKs\adt-bundle-windows-x86-20131030\sdk\android-4.4 or you may have given Delphi a specific target directory, meaning the Android SDK path is, say, C:\PlatformSDKs\adt-bundle-windows-x86-20131030\sdk\android-4.4.

Directories to add to the path are:

I'd certainly recommend extending the Windows search path permanently through the environment variables option in the system properties dialog so you can run Android SDK commands and Java commands at any point going forwards, but if you wanted to run SET commands at the command prompt or from within the batch file they might look a little like this:


SET PATH=%PATH%;C:\Users\Public\Documents\Embarcadero\Studio\15.0\PlatformSDKs\adt-bundle-windows-x86-20131030\sdk\android-4.4
SET PATH=%PATH%;C:\Program Files\Java\jdk1.7.0_25\bin


Once the system path has been updated you will be able to successfully launch the following executables from a command prompt. If you updated the global path then it will be any command prompt launched after you've made the change. If you changed a local environment by running commands at a command prompt then you can run the commands from that command prompt. The commands are:

If you cannot launch either of these commands then go back and review your path settings as they are likely wrong.

Prep step #2: The next preparatory job is to open the batch file in an editor and make appropriate edits to ensure the various environment variables set at the start are correct.

This is what the batch file looks like:

@echo off

setlocal

if x%ANDROID% == x set ANDROID=C:\Users\Public\Documents\Embarcadero\Studio\15.0\PlatformSDKs\adt-bundle-windows-x86-20131030\sdk
rem if x%ANDROID% == x set ANDROID=C:\Android\android-sdk-windows
set ANDROID_PLATFORM=%ANDROID%\platforms\android-19
set EMBO_LIB="C:\Program Files (x86)\Embarcadero\Studio\15.0\lib\android\debug"
set PROJ_DIR=%CD%
set VERBOSE=0

echo.
echo Compiling the Java native activity descendant
echo.
mkdir output\classes 2> nul
if x%VERBOSE% == x1 SET VERBOSE_FLAG=-verbose
javac %VERBOSE_FLAG% -source 1.6 -target 1.6 -Xlint:deprecation -cp %ANDROID_PLATFORM%\android.jar;%EMBO_LIB%\fmx.jar -d output\classes src\com\blong\nfc\NativeActivitySubclass.java

echo.
echo Creating jar containing the new class
echo.
mkdir output\jar 2> nul
if x%VERBOSE% == x1 SET VERBOSE_FLAG=v
jar c%VERBOSE_FLAG%f output\jar\NativeActivitySubclass.jar -C output\classes com

echo Tidying up
echo.
del /Q output\classes\com\blong\nfc\*
rmdir output\classes\com\blong\nfc
rmdir output\classes\com\blong
rmdir output\classes\com
rmdir output\classes

echo.
echo Now we have the end result, which is output\jar\NativeActivitySubclass.jar

:Exit

endlocal

You should modify the set commands for the following environment variables and ensure they refer to appropriate existing directories:

Prep steps are now complete

Now, at last, we can run the Java build script...

To run the build script requires you to first launch a RAD Studio Command Prompt - you can do this in Windows 7 or Windows 8.x by going to the Start menu or Start screen and typing:

  RAD Studio

and then selecting the RAD Studio Command Prompt item that is found. Or you can just hunt through the program groups to find it.

In the RAD Studio Command Prompt you should change directory to the one containing the build.bat batch file and then invoke it by running: build

This should proceed to:

If any of these steps fails then you should review the environment variables and see which one has not been set correctly.

After a successful build you will have a new NativeActivitySubclass.jar file in the project's java\output\jar directory, which contains the native activity descendant class that will respond to launched activity results.

At last it is time to open the sample project in the Delphi XE7 IDE. You will see that the main UI-based functionality in the application is quite trivial.

Setting up the native new intent method

The Java code calls down to a native onNewIntent method, which is implemented and registered in the code you see below. As you glance up and down the code you might observe that it's a bit hairy, but let's look through it and see if we can get a handle on it.

uses
  System.Classes,
  Androidapi.NativeActivity,
  Androidapi.JNI,
  Androidapi.JNIBridge,
  Androidapi.JNI.GraphicsContentViewText,
  ...

{$REGION 'JNI setup code and callback'}
function OnNewIntentNative(PEnv: PJNIEnv; This: JNIObject; NewIntent: JNIObject): Boolean; cdecl;
var
  LocalIntent: JIntent;
begin
  Log.d('Queuing native routine to run synchronized');
  LocalIntent := TJIntent.Wrap(NewIntent);
  TThread.Queue(nil,
    procedure
    begin
      Log.d('+ThreadSwitcher');
      Log.d('Thread: Main: %.8x, Current: %.8x, Java:%.8d (%2:.8x)', [MainThreadID, TThread.CurrentThread.ThreadID,
        TJThread.JavaClass.CurrentThread.getId]);
      MainForm.OnActivityResult(LocalIntent);
      Log.d('-ThreadSwitcher');
    end);
end;

procedure TMainForm.RegisterDelphiNativeMethods;
var
  PEnv: PJNIEnv;
  ActivityClass: JNIClass;
  NativeMethod: JNINativeMethod;
begin
  PEnv := TJNIResolver.GetJNIEnv;
  NativeMethod.Name := 'onNewIntentNative';
  NativeMethod.Signature := '(Landroid/content/Intent;)V';
  NativeMethod.FnPtr := @OnNewIntentNative;

  ActivityClass := PEnv^.GetObjectClass(
    PEnv, PANativeActivity(System.DelphiActivity).clazz);

  PEnv^.RegisterNatives(PEnv, ActivityClass, @NativeMethod, 1);

  PEnv^.DeleteLocalRef(PEnv, ActivityClass);
end;
{$ENDREGION}

The actual native Delphi routine is in fact implemented as the OnNewIntentNative function. Like all JNI functions it uses the C calling convention and has the same first couple of arguments. The first argument is the JNI interface pointer, through which we manipulate Java objects. The second argument points to the Java object for an instance method or to the Java class for a class method, rather like Self does in Delphi methods.

After these initial arguments we have JNI representations of the argument taken by the Java onNewIntent() method, which in this case is a reference type - an Intent object reference. The intent argument becomes a JNIObject, which is Delphi's version of the JNI specification's jobject type, used to represent reference types.

When this native method gets called we queue up some code to run in the FMX thread (remember that the JNI native routine is invoked in the Java UI thread). The code invokes a method on the main form passing the received parameters, wrapping the JNI intent parameter in a JIntent Java bridge (aka JNI bridge or Native Bridge) interface reference to give the form method access to the Java intent object. The called method has been added to look like a regular method, maybe even look a bit like an event handler, to handle the new intent that is passed in.

Ahead of any callbacks actually occurring this JNI routine must first be registered as the implementation of the native method onNewIntent(), which can be called from Java. This task is performed by RegisterDelphiNativeMethods, which gets called in the form's OnCreate event handler.

RegisterDelphiNativeMethods uses an RTL helper to get a JNI interface pointer (the same sort of thing that is given to a JNI method as the first parameter) that will allow the FireMonkey activity object to be manipulated. Then it fills up a JNINativeMethod record with information that JNI can use to map the Java method name and signature to our Delphi routine. Getting the right signature in the relevant format requires a little bit of know-how.

The trick here is to use one of the JDK tools to dump information about NativeActivitySubclass and this will give us the appropriately encoded signature information. The tool in question is javap.exe: the Java class file disassembler.

As it is currently set up the build script deletes all the intermediate files, including the compiled activity descendant. So to work this step through (if you really want to run it - bear in mind I've already done this and used the information gleaned therein within the code) you'd need to re-run the build script after commenting out (or deleting) the tidying up section, particularly removing this line:

del /Q output\classes\com\blong\nfc\*

Now inside of your project's java\output\classes\com\blong\nfc directory you will have a few .class files. From your project's java directory you can run this command:

javap -s -classpath output\classes com.blong.nfc.NativeActivitySubclass

and this will emit information about all the method signatures of the specified class. I've highlighted the key pieces of information that have been used to set up the JNI registration record.

Compiled from "NativeActivitySubclass.java"
public class com.blong.nfc.NativeActivitySubclass extends com.embarcadero.firemonkey.FMXNativeActivity{
static final java.lang.String TAG;
  Signature: Ljava/lang/String;
public com.blong.nfc.NativeActivitySubclass();
  Signature: ()V
protected void onCreate(android.os.Bundle);
  Signature: (Landroid/os/Bundle;)V
public native boolean onNewIntentNative(android.content.Intent);
  Signature: (Landroid/content/Intent;)V
protected void onNewIntent(android.content.Intent);
  Signature: (Landroid/content/Intent;)V
}

RegisterDelphiNativeMethods then proceeds to use JNI routines to get a local reference to the FireMonkey activity object's class, which it uses to register the native method against (the native method is part of our app's activity class) before cleaning up the local reference.

There is quite a bit to think about when setting this up in a new application but hopefully with the various steps explained it at least becomes understandable.

After that tortuous journey we can now actually write a handler for the new intent in order to work with the scanned NFC tag!

procedure TMainForm.OnNewIntent(Intent: JIntent);
begin
  SharedActivity.setIntent(Intent);
  if Intent <> nil then
  begin
    ...
  end;
end;

This is now essentially the same position that we were in earlier with the tag dispatch system. We need to extract the tag and process it, which we'll look at shortly. Let's first finish the run through of the tricky side of this kind of Android programming with Delphi XE5.

Building the app

The application can now be compiled to a native Android library and then deployed into an Android application package (.apk file) using the Project, Compile NFC_Sample and Project, Deploy libNFC_Sample.so menu items respectively.

If you wish you can skip those two steps and have them done implicitly by choosing the Run, Run Without Debugging menu item (or by pressing Ctrl+Shift+F9). This will install the app. If it is already installed then the app will be re-installed, preserving any data that the app has already built up.

Note that despite choosing the Run Without Debugging menu item, the application will not be launched on the target device. The same is true if you choose Run, Run (F9). This is due to another shortcoming of the IDE in which it assumes the launch activity will be the stock FireMonkey activity and so is unable to contend with the situation we have here where we are using a descendant of the stock activity, which has a different class name. This issue is open in Quality Central as QC 118450.

Notes on working around issues developing your app

Clearly with the issues with launching the application there is no possibility of debugging your code. You cannot attach to a running Android process as you can with a Windows process, for example.

If you need to actively debug (as opposed to some agricultural equivalent such as using calls to Log.d from the FMX.Types unit) then it is incumbent upon you to set up a pair of almost-mirror projects. One project will have all these hacks described thus far on this page, and will enable launched activity results to be received by your app. The other project will use the same application logic and units, but will ignore all aspects of setting up activity result response. Consequently this second project should support regular Android app debugging.

Working with NFC tag objects

After all the preamble of how to set up the code for the two approaches to coding up an NFC app using either the tag dispatch system or the foreground dispatch system we can now look at the NFC tag object itself.

Both approaches ultimately end up with a tag object parcelled into an intent object that is delivered into your code. We need to pull out the tag object and inspect it and see what we can glean from it.

Reading an NFC tag

Here is the code from the second sample app's OnNewIntent method. The first job is to ensure that the intent really represents a scanned NFC tag by checking it against the 3 possible intent actions discussed above.

procedure TMainForm.OnNewIntent(Intent: JIntent);
var
  TagParcel: JParcelable;
  Tag: JTag;
begin
  SharedActivity.setIntent(Intent);
  if Intent <> nil then
  begin
    Log.d('Intent action = %s', [JStringToString(Intent.getAction)]);
    if TJNfcAdapter.JavaClass.ACTION_NDEF_DISCOVERED.equals(Intent.getAction) or
       TJNfcAdapter.JavaClass.ACTION_TECH_DISCOVERED.equals(Intent.getAction) or
       TJNfcAdapter.JavaClass.ACTION_TAG_DISCOVERED.equals(Intent.getAction) then
    begin
      PromptLabel.Visible := False;
      Log.d('Getting Tag parcel from the received Intent');
      TagParcel := Intent.getParcelableExtra(TJNfcAdapter.JavaClass.EXTRA_TAG);
      if TagParcel <> nil then
      begin
        Log.d('Wrapping tag from the parcel');
        Tag := TJTag.Wrap((TagParcel as ILocalObject).GetObjectID);
      end;
      InfoLabel.Text := '';
      NFCTagIdLabel.Text := HandleNfcTag(Tag,
        procedure (const Msg: string)
        begin
          Log.d('Adding to UI: ' + Msg);
          InfoLabel.Text := InfoLabel.Text + Msg + LineFeed;
        end);
    end;
  end;
end;

This foreground dispatch sample app starts with a prompt label suggesting the user scans a tag. If we now have an intent containing a scanned NFC tag object then the prompt label is cleared.

Now we get the tag from the intent as a Parcelable object (Parcelable is an interface implemented by all parcelable objects, including NFC Tag objects).

In Java we would simply cast the object back to a Tag but it's a trickier exercise in Delphi. To do the cast operation we must get a reference to the ILocalObject interface implemented by all Java Bridge objects. Through this we get the underlying object ID - an opaque pointer to the Java object. This object ID can then be wrapped up by the target Java Bridge class.

So now we have an NFC Tag object!

The code clears an information label in preparation for some text to be written there and then calls a helper routine, HandleNfcTag, to get a dump of what's in the tag object. HandleNfcTag takes as arguments the tag object and also a reference to a routine that will be passed various data pulled from the tag object - in this case I'm passing in an anonymous method that adds in the new text onto the information label. When the function is done it will return a string containing the NFC tag's ID bytes turned into text, which are written onto another label.

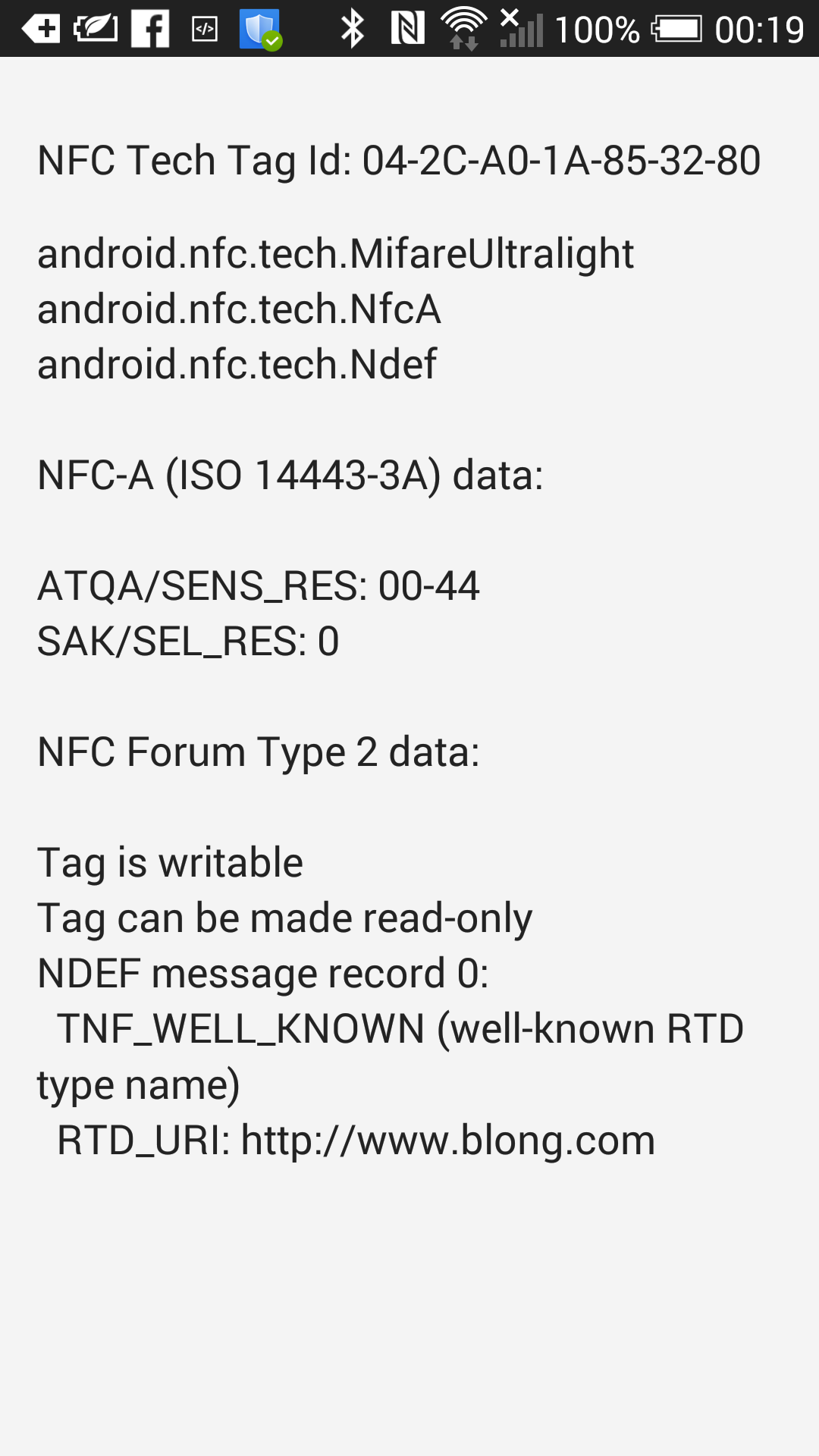

Before we delve into the guts of the helper routine, here's the simple sample app showing information read from a scanned NFC tag:

NFC sample app

The top line of text is the text rendering of the NFC tag ID bytes. The rest is information pulled from the tag object. In this case the technologies supported by my tag are MifareUltralight, NfcA and Ndef, each of which are represented by Android classes, MifareUltralight, NfcA and Ndef, which themselves are represented by Java Bridge interface types in my Androidapi.JNI.Nfc.Tech.pas unit, JMifareUltralight, JNfcA and JNdef. You can see an overview of the various tag technology classes in the Android documentation here.

Here's the helper routine laid bare:

function HandleNfcTag(Tag: JTag; AddMsg: TTextLogger): string;
var
  I: Integer;
  JTagID: TJavaArray<Byte>;
  JTagTechList: TJavaObjectArray<JString>;
  JTechType: JString;
  TechType: String;
  TagTechList: TStrings;
const
  NFCA_Type = 'android.nfc.tech.NfcA';
  NFCB_Type = 'android.nfc.tech.NfcB';
  NFCF_Type = 'android.nfc.tech.NfcF';
  NFCV_Type = 'android.nfc.tech.NfcV';
  NFCNDef_Type = 'android.nfc.tech.Ndef';
  NFCIsoDep_Type = 'android.nfc.tech.IsoDep';
  MandatoryAndroidTechs: array[0..5] of string = (
    NFCA_Type,
    NFCB_Type,
    NFCF_Type,
    NFCV_Type,
    NFCNDef_Type,
    NFCIsoDep_Type);
begin
  if Tag <> nil then
  begin
    JTagID := Tag.getId;
    // Write out the ID byte values
    if JTagID <> nil then
    begin
      Result := 'NFC Tech Tag Id: ' + JavaBytesToString(JTagID);
    end;
    // Examine the tag
    JTagTechList := Tag.getTechList;
    TagTechList := TStringList.Create;
    try
      Log.d('Listing tag techs');
      if JTagTechList <> nil then
      begin
        for I := 0 to Pred(JTagTechList.Length) do
        begin
          JTechType := JTagTechList.Items[I];
          if JTechType <> nil then
          begin
            TechType := JStringToString(JTechType);
            TagTechList.Add(TechType);
            AddMsg(TechType);
          end;
        end;
        AddMsg('');
      end;
      // Process the different possible tag technology types and do something with them
      if TagTechList.IndexOf(NFCA_Type) >= 0 then
        AddMsg(DumpNFC_A(Tag));
      if TagTechList.IndexOf(NFCB_Type) >= 0 then
        AddMsg(DumpNFC_B(Tag));
      if TagTechList.IndexOf(NFCF_Type) >= 0 then
        AddMsg(DumpNFC_F(Tag));
      if TagTechList.IndexOf(NFCV_Type) >= 0 then
        AddMsg(DumpNFC_V(Tag));
      if TagTechList.IndexOf(NFCNDef_Type) >= 0 then
        AddMsg(DumpNDef(Tag));
      if TagTechList.IndexOf(NFCIsoDep_Type) >= 0 then
        AddMsg(DumpIsoDep(Tag));
    finally
      TagTechList.Free;
    end;
  end;
end;

The first thing it does is pull out the tag's ID, which comes out as a Java array of bytes. A helper routine in the unit (JavaBytesToString) iterates over each byte calling IntToHex on it to build up the textual ID.

The next task is to list out the tag technologies. The tag's getTechList() method returns them as a Java array of strings so a loop iterates across them adding Delphi string versions of them into a TStringList.

There are a variety of tag technologies as listed here and here. Both pages divide them into mandatory technologies, supported on all Android devices, and optional ones. However one of the pages lists seven mandatory tech types and the other lists just six, so the story is a little unclear. I haven't followed it up yet (it wasn't too important to me) so am currently unsure which is correct.

The sample code just pays attention to six mandatory tag technologies and checks for each one in turn. If the tag technology is supported by the tag then the tag is passed along to one of six helper routines designed to dump information for each of these tag tech types.

Five of the six dump routines are simple enough. They make use of the various methods exposed by the Java tag tech objects and add the results to the information string:

function DumpNFC_A(Tag: JTag): string;
var
  JATag: JNfcA;
begin
  Log.d('Found tech type A');
  // Technical details to be found at http://www.waazaa.org/download/fcd-14443-3.pdf
  JATag := TJNfcA.JavaClass.get(Tag);
  Result := Result + Format('NFC-A (ISO 14443-3A) data:%:0s%:0s', [LineFeed]);
  // Answer To Request of Type A
  Result := Result + Format('ATQA/SENS_RES: %s%s', [JavaBytesToStringReverse(JATag.getAtqa), LineFeed]);
  // Select Acknowledge
  Result := Result + Format('SAK/SEL_RES: %d%s', [JATag.getSak, LineFeed]);
  // ATQA+SAK can help ID a tag: http://nfc-tools.org/index.php?title=ISO14443A
end;

function DumpNFC_B(Tag: JTag): string;
var
  JBTag: JNfcB;
begin
  Log.d('Found tech type B');
  // Technical details to be found at http://www.waazaa.org/download/fcd-14443-3.pdf
  JBTag := TJNfcB.JavaClass.get(Tag);
  Result := Result + Format('NFC-B (ISO 14443-3B) data:%:0s%:0s', [LineFeed]);
  // Answer To Request of Type B
  Result := Result + Format('ATQB/SENSB_RES application data: %s%s', [JavaBytesToStringReverse(JBTag.getApplicationData),
    LineFeed]);
  Result := Result + Format('ATQB/SENSB_RES protocol info: %s%s', [JavaBytesToStringReverse(JBTag.getProtocolInfo), LineFeed]);
end;

function DumpNFC_F(Tag: JTag): string;
var
  JFTag: JNfcF;
begin
  Log.d('Found tech type F');
  JFTag := TJNfcF.JavaClass.get(Tag);
  Result := Result + Format('NFC-F (JIS 6319-4) data:%:0s%:0s', [LineFeed]);
  Result := Result + Format('System code: %s (%s)%s', [JavaBytesToString(JFTag.getSystemCode),
    JavaBytesToText(JFTag.getSystemCode), LineFeed]);
  Result := Result + Format('Manufacturer: %s (%s)%s', [JavaBytesToString(JFTag.getManufacturer),
    JavaBytesToText(JFTag.getManufacturer), LineFeed]);
end;

function DumpNFC_V(Tag: JTag): string;
var
  JVTag: JNfcV;
begin
  Log.d('Found tech type V');
  // Technical details to be found at http://www.waazaa.org/download/fcd-15693-3.pdf
  JVTag := TJNfcV.JavaClass.get(Tag);
  Result := Result + Format('NFC-V (ISO 15693) data:%:0s%:0s', [LineFeed]);
  // Data Storage Format ID
  Result := Result + Format('DSF ID: %x%s', [JVTag.getDsfId, LineFeed]);
  Result := Result + Format('Response flags: %x%s', [JVTag.getResponseFlags, LineFeed]);
end;

function DumpIsoDep(Tag: JTag): string;
var
  JIsoTag: JIsoDep;
begin
  Log.d('Found tech type ISO Dep');
  JIsoTag := TJIsoDep.JavaClass.get(Tag);
  Result := Result + Format('ISO-DEP (ISO 14443-4) data:%s', [LineFeed]);
  Result := Result + Format('ISO-DEP historical data for NfcA tags: %s%s',
    [JavaBytesToString(JIsoTag.getHistoricalBytes), LineFeed]);
  Result := Result + Format('Higher layer response data for NfcB tags: %s%s',
    [JavaBytesToString(JIsoTag.getHiLayerResponse), LineFeed]);
end;

It's the Ndef tag tech type dissection that contains all the interesting bits. As the documentation page illustrates there are four types of standardised NFC tags that support NDEF data. The methods in the class allow you to ascertain certain standard information, such as the tag type (one of the four standardised types), whether the tag is read-only or not, whether the tag can be made read-only, the maximum NDEF message size and so on.

You can download the formal NDEF specification to get full details on the layout of data in an NDEF message from the NFC Forum or you can get summary information on the Android documentation site. For the sake of the sample we'll try and keep it simple.

On an NDEF tag is an NDEF message containing one or more NDEF records. We'll look through the records and see if they contain some information we can dump out.

You can get hold of an object that represents this NDEF message in the form of an NdefMessage object. You can either read a cached NDEF message that was read when the tag was discovered, or read the current message, on the off-chance it may have been updated. The sample code reads the cached message.

An NdefMessage object offers a getRecords() method that returns a Java array of NdefRecord objects. Unfortunately when iterating over the record array and trying to access each record therein we hit upon some crash bug whereby the record objects aren't surfaced correctly for us. Fortunately we can work around this problem by pulling the raw object ID from the array wrapper and manually wrapping it into a JNdefRecord Java Bridge object. Props to Daniel Magin for spotting that issue and working out a nifty way round it!

function DumpNDef(Tag: JTag): string;
var
  JNDefTag: JNdef;
  JNDefTagType: JString;
  JNDefMsg: JNdefMessage;
  JNDefMsgRecords: TJavaObjectArray<JNdefRecord>;
  JNDefMsgRecord: JNdefRecord;
  JRecordType: TJavaArray<Byte>;
  I: Integer;
begin
  Log.d('Found tech type NDEF');
  JNDefTag := TJNdef.JavaClass.get(Tag);
  JNDefTagType := JNDefTag.getType;
  Log.d('NDEF type: ' + JStringToString(JNDefTagType));
  if JNDefTagType.equals(TJNDef.JavaClass.NFC_FORUM_TYPE_1) then
    Result := Result + Format('NFC Forum Type 1 data:%:0s%:1s', [LineFeed])
  else if JNDefTagType.equals(TJNDef.JavaClass.NFC_FORUM_TYPE_2) then
    Result := Result + Format('NFC Forum Type 2 data:%:0s%:1s', [LineFeed])
  else if JNDefTagType.equals(TJNDef.JavaClass.NFC_FORUM_TYPE_3) then
    Result := Result + Format('NFC Forum Type 3 data:%:0s%:1s', [LineFeed])
  else if JNDefTagType.equals(TJNDef.JavaClass.NFC_FORUM_TYPE_4) then
    Result := Result + Format('NFC Forum Type 4 data:%:0s%:1s', [LineFeed]);
  Result := Result + Format('Tag is %swritable%s', [IfThen(JNDefTag.isWritable, '', 'not '), LineFeed]);
  Result := Result + Format('Tag can%s be made read-only%s', [IfThen(JNDefTag.canMakeReadOnly, '', 'not'), LineFeed]);
  JNDefMsg := JNDefTag.getCachedNdefMessage;
  if JNDefMsg = nil then
    Result := Result + Format('No NDEF message found%s', [LineFeed])
  else
  begin
    JNDefMsgRecords := JNDefMsg.getRecords;
    if JNDefMsgRecords <> nil then
    begin
      for I := 0 to Pred(JNDefMsgRecords.Length) do
      begin
        // This does not work as expected - presumably a bug
        //JNDefMsgRecord := JNDefMsgRecords.Items[I];
        // So instead we wrap up the raw object ID manually
        JNDefMsgRecord := TJNdefRecord.Wrap(JNDefMsgRecords.GetRawItem(I));
        Result := Result + Format('NDEF message record %d: %s', [I, LineFeed]);
        case JNDefMsgRecord.getTnf of
          TJNdefRecordTNF_EMPTY:
            Result := Result + Format('  TNF_EMPTY (empty record)%s', [LineFeed]);
          TJNdefRecordTNF_MIME_MEDIA:
            Result := Result + Format('  TNF_MIME_MEDIA (RFC 2046 media-type BNF construct)%s', [LineFeed]);
          TJNdefRecordTNF_ABSOLUTE_URI:
            Result := Result + Format('  TNF_ABSOLUTE_URI (RFC 3986 absolute-URI BNF construct)%s', [LineFeed]);
          TJNdefRecordTNF_EXTERNAL_TYPE:
            Result := Result + Format('  TNF_EXTERNAL_TYPE (external type name)%s', [LineFeed]);
          TJNdefRecordTNF_UNKNOWN:
            Result := Result + Format('  TNF_UNKNOWN (unknown payload type)%s', [LineFeed]);
          TJNdefRecordTNF_UNCHANGED:
            Result := Result + Format('  TNF_UNCHANGED (an intermediate or final chunk of a chunked NDEF Record)%s', [LineFeed]);
          TJNdefRecordTNF_WELL_KNOWN:
          begin
            Result := Result + Format('  TNF_WELL_KNOWN (well-known RTD type name)%s', [LineFeed]);
            // NFC Record Type Definition technical spec.s are at http://members.nfc-forum.org/specs/spec_list
            JRecordType := JNDefMsgRecord.getType;
            if MatchingRecordType(JRecordType, TJNdefRecord.JavaClass.RTD_TEXT) then
              Result := Result + Format('  RTD_TEXT: %s%s', [DecodeText(JNDefMsgRecord.getPayload), LineFeed])
            else
            if
MatchingRecordType(JRecordType, TJNdefRecord.JavaClass.RTD_URI) then
              Result := Result + Format('  RTD_URI: %s%s', [DecodeURI(JNDefMsgRecord.getPayload), LineFeed])
            else
            if MatchingRecordType(JRecordType, TJNdefRecord.JavaClass.RTD_SMART_POSTER) then
              // TODO: Haven't pulled out the smart poster URI yet
              Result := Result + Format('  RTD_SMART_POSTER: %s%s', [JavaBytesToText(JNDefMsgRecord.getPayload), LineFeed])
            else
            if MatchingRecordType(JRecordType, TJNdefRecord.JavaClass.RTD_HANDOVER_SELECT) then
              Result := Result + Format('  RTD_HANDOVER_SELECT%s', [LineFeed])
            else
            if MatchingRecordType(JRecordType, TJNdefRecord.JavaClass.RTD_HANDOVER_REQUEST) then
              Result := Result + Format('  RTD_HANDOVER_REQUEST%s', [LineFeed])
            else
            if MatchingRecordType(JRecordType, TJNdefRecord.JavaClass.RTD_HANDOVER_CARRIER) then
              Result := Result + Format('  RTD_HANDOVER_CARRIER%s', [LineFeed])
            else
            if MatchingRecordType(JRecordType, TJNdefRecord.JavaClass.RTD_ALTERNATIVE_CARRIER) then
              Result := Result + Format('  RTD_ALTERNATIVE_CARRIER%s', [LineFeed]);
          end;
        end;
      end;
    end;
  end;
end;

As you can see the record object offers a getTnf() method to learn its TNF or Type Name Format field. This is a 3 bit value with values available as constants in the NdefRecord class (see here). The TNF value dictates how you should parse the data in the rest of the record. In the case of TNF_WELL_KNOWN, which has a value of 1, the record is one of a number of well known types and so the NFC Forum's Record Type Definitions (RTD) kick in.

The RTD is a byte array and obtained through the record's getType() method. You match it to one of the RTD byte array fields offered by the NdefRecord class to see which known type it is, and thereby you can determine the NDEF message record payload format.

The NFC Forum makes available the payload format for plain text, URI and smart poster. The documentation there also confirms that the RTD byte arrays for text, URI and smart poster are byte equivalents of T ($54), U ($55) and Sp ($53, $70) respectively. The sample code caters for the first two of these three but doesn't cover smart poster format.

I'll leave the code that decodes text and URI NDEF records out of this article and refer you to the sample code to see it instead. It would serve no specific benefit to the business of how to access NFC tags when it is really just a case of parsing byte arrays.

The key thing to take away from this article is that Delphi apps can make good use of NFC tags in either mode of standard NFC reading you choose.

Writing an NFC tag

Before leaving the subject we probably ought to also look at how to write to an NFC tag.

A common approach is to write an NDEF record to the tag, assuming the tag supports the NDEF technology. So the actual sample shipped in the downloads for this article really looks like this:

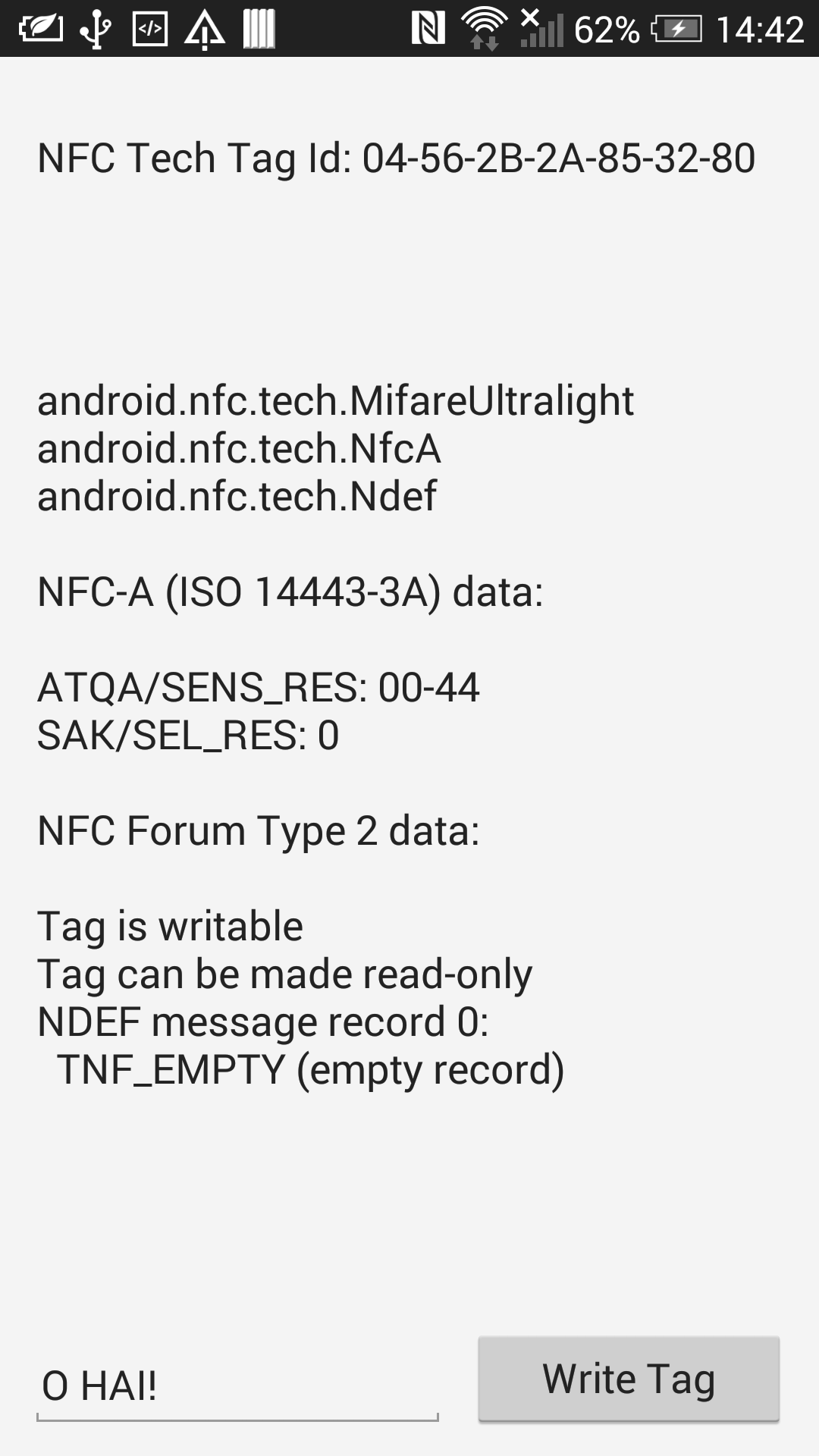

NFC sample app

You can see text can be entered at the bottom of the form and the button can be used to write the text in an NDEF record in an NDEF message to an NDEF-compatible tag.

Incidentally, the sample app has an obvious shortcoming in that I haven't done anything to move the edit control up when the virtual keyboard appears on the screen, so when typing in text you can't see what you are typing into. However in this context that is an irrelevance.

The button has this code for an event handler:

procedure TMainForm.TagWriteButtonClick(Sender: TObject);
var
  TagParcel: JParcelable;
  Tag: JTag;
  Intent: JIntent;
begin
  if (NfcAdapter <> nil) and NfcAdapter.isEnabled then
  begin
    Intent := SharedActivity.getIntent;
    TagParcel := Intent.getParcelableExtra(TJNfcAdapter.JavaClass.EXTRA_TAG);
    if TagParcel <> nil then
    begin
      Log.d('Wrapping tag from the parcel');
      Tag := TJTag.Wrap((TagParcel as ILocalObject).GetObjectID);
      if not WriteTagText(TagWriteEdit.Text, Tag) then
        raise Exception.Create('Error connecting to tag');
    end;
  end
  else
    raise Exception.Create('NFC is not available');
end;

It gets the activity's intent and pulls the NFC tag object from it. Note that in the earlier code we set the activity's intent to any new intent that we were delivered by the foreground dispatch system.

The tag then gets passed to a helper routine that looks like this:

function WriteTagText(const Msg: string; Tag: JTag): Boolean;
var
  NDef: JNdef;
  NDefMsg: JNdefMessage;
  NDefRecords: TJavaObjectArray<JNdefRecord>;
begin
  NDef := TJNdef.JavaClass.get(Tag);
  if NDef <> nil then
  begin
    try
      NDef.connect;
      Result := NDef.isConnected;
      if Result then
      begin
        NDefRecords := TJavaObjectArray<JNdefRecord>.Create(2);
        NDefRecords.Items[0] := EncodeText(Msg);
        NDefRecords.Items[1] := TJNdefRecord.JavaClass.createUri(StringToJString('http://blong.com'));
        NDefMsg := TJNdefMessage.JavaClass.init(NDefRecords);
        NDef.writeNdefMessage(NDefMsg);
        NDef.close;
      end;
    except
      on EJNIException do
        Result := False;
    end
  end
  else
    raise Exception.Create('This is not an NDEF-compatible tag!');
end;

This code tries to get an NDEF tag technology object for the scanned tag, which will only work if the tag is NDEF-compatible. Assuming we get the NDEF tag tech object we next open a connection to the tag in order to write to it, and also to later close the connection.

Assuming we establish a connection to the tag (which relies upon it still being there) we can build up a message to write. The NdefMessage class has a constructor that takes a Java array of NdefRecord objects, so we set up a suitable array of records.

In this sample app's case we write out 2 records - one is the text record generated by another helper routine, EncodeText, and one is a URI record generated by a static method of the NdefRecord class specifically for packaging up URIs in the correct way. So as well as the text entered by the user the NFC tag also gets a record containing my web site address.

Again, the details of encoding some text into a record aren't too important, but are available to read in the code sample. It just follows the information available in the NFC Forum text record type definition.

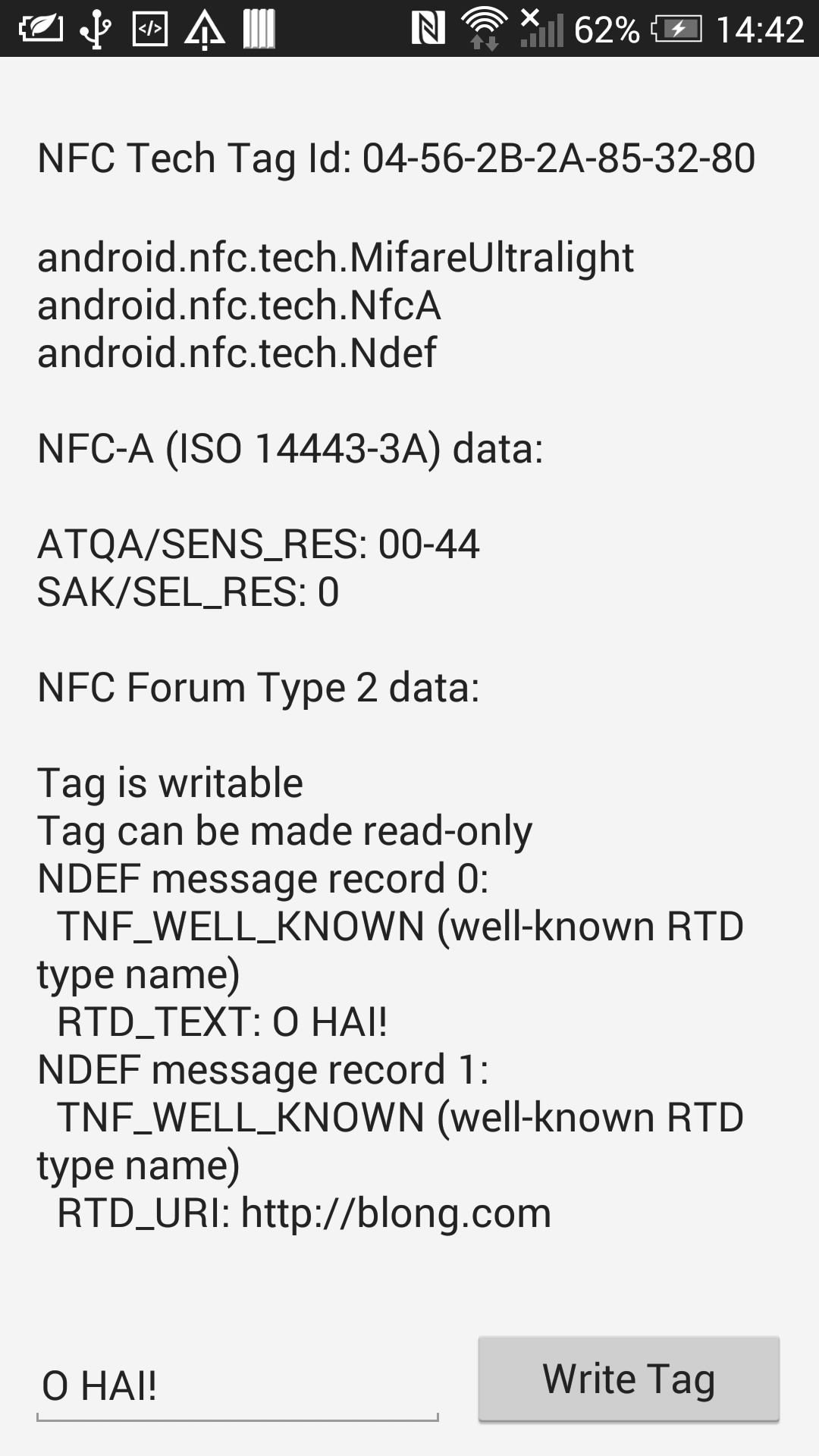

NFC sample app

Conclusion

You can extend the functionality of your application by taking advantage of available Android functionality, including support for scanning NFC tags on devices that have an appropriate NFC sensor.

Writing code in an app that is auto-launched by Android when an NFC tag is detected is quite straightforward once you have the API imports available.

However having a regular app set up support for priority NFC tag scanning using the NFC foreground dispatch system is not quite so straightforward. Well, in a sense it is as the hard work of working out how to do it has been done for you <g>, but it is still a bit of a drag to set up in an app. The onerous Java-based steps for dealing with the problem are not outlandish, but they are definitely tedious and cumbersome.


Go back to the top of this page
